SKU: 112247431
  • GTIN:4082300972375
  • HAN:1FJ 358 236-021

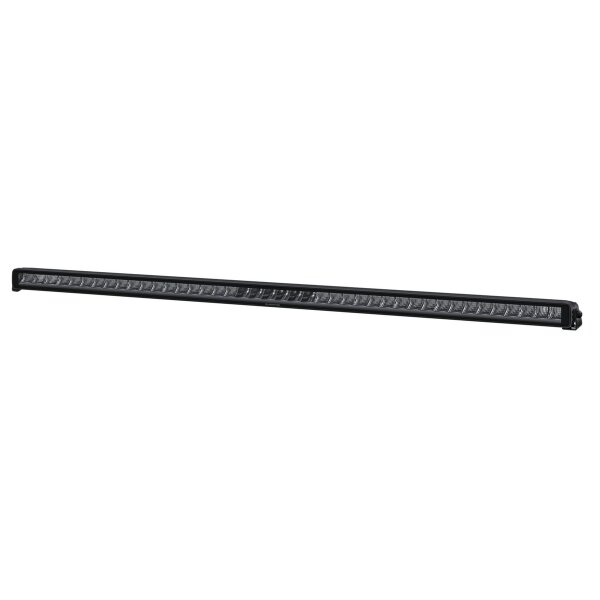

Headlight front 24 V LED HELLA universally applicable for various vehicles

277,03 €
incl. 19% VAT , plus SHIPMENT
Fitting Position:
Front
Mounting Type:
Screw Connection
Number of light functions:
3
Lamp Type:
LED
Light Function:
High-boost
Depth [mm]:
54
Protection Type (IP Code):
IP68
Rated Power [W]:
172
Number of LEDs:
42
Luminous Flux [lm]:
6,508
Diffusing Lens Material:
PC (Polycarbonate)
Registration Type:
ECE approved
Height [mm]:
40
Overall Height [mm]:
47
Cable Length [mm]:
2,000
Shape:
Slim
Housing Colour:
black
Frame Colour:
black
Diffusing Lens Type:
Clear diffusing lens
fulfils ECE standard:
R149
Lens Colour:
Crystal clear
Housing material:
Aluminium
Weight [g]:
2,600
Colour Temperature [K]:
5,700
Length [mm]:
1,006
Voltage [V]:
24
Temperature range from [°C]:
-30
Temperature range to [°C]:
+65
Type:
Headlight
Light colour:
white
Reference number:
45
Theoretical luminous flux [lm]:
10,584
Luminous in boost mode [lm]:
11,140
max. light cone range at 1 lux (main light function) [m]:
474
Theoretical luminous flux in Boost mode [lm]:
17,640
max. light cone range at 1 lux (high boost function) [m]:
619
Shipping weight:
2,80 kg
