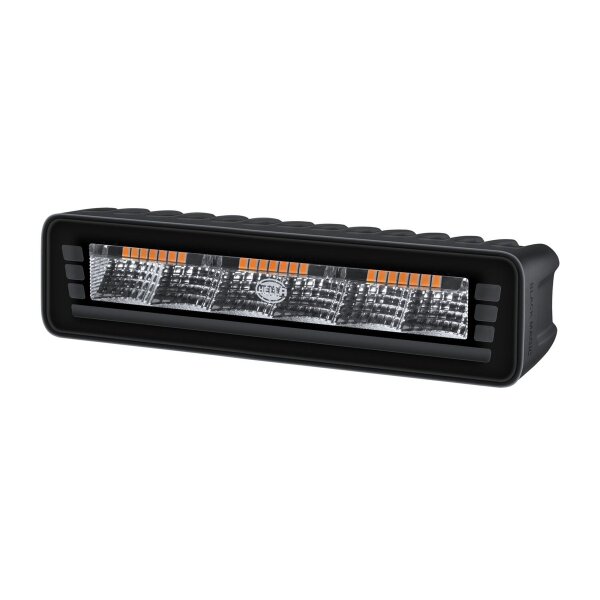

Worklight front 24 V LED 5,700 K 3,540 lm HELLA universal use

SKU: 112247425

GTIN:4082300982312
HAN:1FB 358 236-201

Worklight front 24 V LED 5,700 K 3,540 lm HELLA universal use

79,91 €

incl. 19% VAT , plus

Fitting Position:

Front

Light Design:

LED

Number of light functions:

Lamp Type:

LED

Light Function:

with flashing warning signal

Depth [mm]:

64.8

Protection Type (IP Code):

IP68

Rated Power [W]:

Number of LEDs:

Fastening Type:

Screw connection

Luminous Flux [lm]:

2,154

Diffusing Lens Material:

PC (Polycarbonate)

Registration Type:

ECE approved

Height [mm]:

44.1

Overall Height [mm]:

56.7

Cable Length [mm]:

800

Shape:

Slim

Housing Colour:

black

Frame Colour:

black

Diffusing Lens Type:

Clear diffusing lens

fulfils ECE standard:

R148

Lens Colour:

white

Housing material:

Aluminium

Weight [g]:

500

Voltage from [V]:

Voltage to [V]:

Colour Temperature [K]:

5,700

Length [mm]:

176.6

Voltage [V]:

Temperature range from [°C]:

-30

Temperature range to [°C]:

+65

Type:

Worklight

Light colour:

yellow (amber)

fulfils EMC/CISPR standard:

CISPR 25 Class 3

Theoretical luminous flux [lm]:

3,540

max. light cone range at 1 lux (main light function) [m]:

Shipping weight:

0,80 kg

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

HELLA 1FB 358 236-201 Worklight Front 24 V LED LED 5,700 K 3,540 lm

How to order correctly, safely and specifically:

Compare OE/part number
Check HSN/TSN (VIN/KBA)
Validate year of manufacture, engine type and PR codes

Important note: Product images may differ slightly from the actual product. We therefore recommend that you carefully check the item specifications and vehicle-specific fitment data.

Do you have any questions about searching for car spare parts, order processing or similar? Our customer service team is here to help. Always competent, straightforward and personal. One-contact solutions for your needs.

Order now. We deliver reliably. For you!

Fitting Position:	Front
Light Design:	LED
Number of light functions:	3
Lamp Type:	LED
Light Function:	with flashing warning signal
Depth [mm]:	64.8
Protection Type (IP Code):	IP68
Rated Power [W]:	24
Number of LEDs:	27
Fastening Type:	Screw connection
Luminous Flux [lm]:	2,154
Diffusing Lens Material:	PC (Polycarbonate)
Registration Type:	ECE approved
Height [mm]:	44.1
Overall Height [mm]:	56.7
Cable Length [mm]:	800
Shape:	Slim
Housing Colour:	black
Frame Colour:	black
Diffusing Lens Type:	Clear diffusing lens
fulfils ECE standard:	R148
Lens Colour:	white
Housing material:	Aluminium
Weight [g]:	500
Voltage from [V]:	10
Voltage to [V]:	30
Colour Temperature [K]:	5,700
Length [mm]:	176.6
Voltage [V]:	24
Temperature range from [°C]:	-30
Temperature range to [°C]:	+65
Type:	Worklight
Light colour:	yellow (amber)
fulfils EMC/CISPR standard:	CISPR 25 Class 3
Theoretical luminous flux [lm]:	3,540
max. light cone range at 1 lux (main light function) [m]:	53
Shipping weight:	0,80 kg
