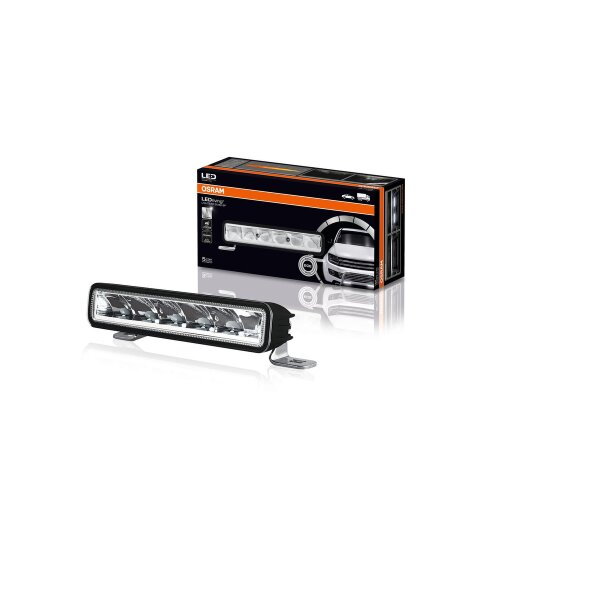

Auxiliary headlamp LED 14W screwed 1,300lm OSRAM LIGHTBAR SX180

SKU: 112005153

GTIN:4052899595415
HAN:LEDDL105-SP

Auxiliary headlamp LED 14W screwed 1,300lm OSRAM LIGHTBAR SX180

80,49 €

incl. 19% VAT , plus

Mounting Type:

Bolted

Lamp Type:

LED

Width [mm]:

63.5

Rated Power [W]:

Height [mm]:

Length [mm]:

182

Vehicle Main Current:

for vehicles with 24V main current für Fahrzeuge mit 12V Bordnetz, für Fahrzeuge mit 24V Bordnetz

Nominal luminous flux:

1300 lm

Product line:

Lightbar SX180-SP

Test voltage:

13,5 V

Lifespan Tc:

5000 hr

Technology:

LED

Application (category and product specific):

Zusätzliches Fernlicht

Nominal wattage:

14 W

Color temperature:

6000 K

Type of protection:

IP69K

Shipping weight:

0,87 kg

Currently out of stock

Currently out of stock

LEDriving LIGHTBAR SX180-SP, LED auxiliary headlamp for high beam, spot, 1300 lumen, light beam up to 190 m, LED work light, ECE approval

OSRAM LEDriving auxiliary headlamp Lightbar SX180-SP: ECE-compliant, durable and robust LED auxiliary headlamp for the road with 6.000 Kelvin, 1,300 lumen, 6 OSRAM LEDs
Compact and robust: shatterproof polycarbonate lens for heavy-duty use
Spot beam for improved far-field illumination: up to 190 metres of illumination
Environmental temperature: -30°C to 60°C! Integrated driver and thermal management system for increased service life
Legal information: For 12/24 V vehicles, auxiliary headlights must be installed in pairs. Exact conditions at osram.de/am-garantie

Bright light is particularly important on unlit roads and country lanes. This enables obstacles in the distance to be recognised at an early stage. The LEDriving Lightbar SX180-SP auxiliary headlamp for cars offers drivers better visibility and increased safety on the road thanks to the six high-performance LEDs, but the LED auxiliary headlamp also impresses at short distances. With an illuminance of one lux and a beam angle of eight degrees, the light beam range extends a full 190 metres. The sophisticated reflector design of the searchlight ensures very high optical efficiency with uniform light distribution and reduced glare. The latter is particularly important with regard to oncoming traffic and also contributes to the aspect of road safety.apart from the light output, the LED main headlamp emphasises the off-road style of the vehicle. Because the LED auxiliary headlamp is certified for road use, its use is not limited to off-road terrain.Various mounting options & durabilityWith almost daily use, it goes without saying that the LED auxiliary headlamp has to withstand a lot. Thanks to its sturdy polycarbonate lens, it can withstand even the toughest demands, thus increasing the service life of the auxiliary headlamp for cars.An integrated driver and thermal management system prevents possible damage due to overheating. The overvoltage and undervoltage protection prevents the specified current from being exceeded for a predetermined period of time by automatically interrupting the circuit.Even large temperature differences are no problem for the LEDriving Lightbar SX180-SP LED auxiliary headlights. This is because they work at ambient temperatures ranging from a very cold -30 to a hot 60 degrees Celsius. This feature is particularly helpful on extreme off-road tours, and the LED worklight has a variety of mounting options thanks to its compact mounting dimensions. This means that all-wheel drive and off-road vehicles as well as commercial and construction vehicles can also be fitted with the LED auxiliary headlamp at the front of the vehicle without any problems.

Mounting Type:	Bolted
Lamp Type:	LED
Width [mm]:	63.5
Rated Power [W]:	14
Height [mm]:	50
Length [mm]:	182
Vehicle Main Current:	for vehicles with 24V main current für Fahrzeuge mit 12V Bordnetz, für Fahrzeuge mit 24V Bordnetz
Nominal luminous flux:	1300 lm
Product line:	Lightbar SX180-SP
Test voltage:	13,5 V
Lifespan Tc:	5000 hr
Technology:	LED
Application (category and product specific):	Zusätzliches Fernlicht
Nominal wattage:	14 W
Color temperature:	6000 K
Type of protection:	IP69K
Shipping weight:	0,87 kg
