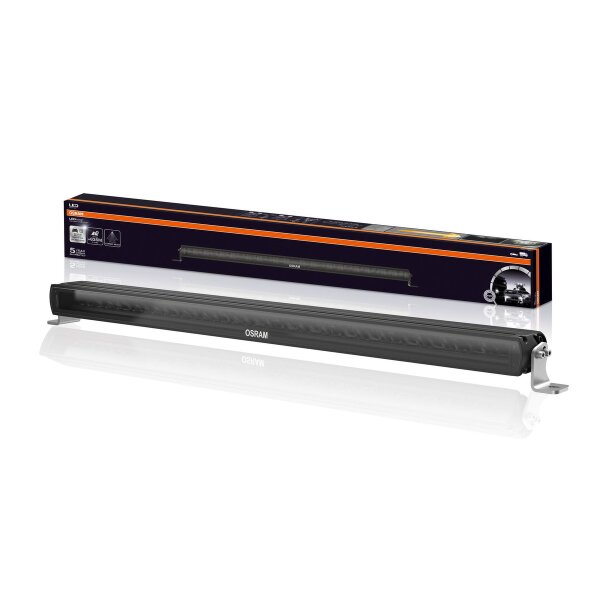

Auxiliary headlamp LED 140W screwed R10 8000lm OSRAM LIGHTBAR FX1000-CB

SKU: 112005260

GTIN:4062172154031
HAN:LEDDL114-CB SM

Auxiliary headlamp LED 140W screwed R10 8000lm OSRAM LIGHTBAR FX1000-CB

334,12 €

incl. 19% VAT , plus

Mounting Type:

Bolted

Lamp Type:

LED

Width [mm]:

Rated Power [W]:

140

Height [mm]:

fulfils ECE standard:

R10 R112

Weight [g]:

4,360

Length [mm]:

1,074

Vehicle Main Current:

for vehicles with 24V main current für Fahrzeuge mit 12V Bordnetz, für Fahrzeuge mit 24V Bordnetz

Nominal luminous flux:

8000 lm

Rated voltage:

12/24 V

Product line:

Lightbar FX1000-CB SM GEN 2

Test voltage:

13,2 V

Lifespan Tc:

5000 hr

Technology:

LED

REM technology:

Leuchtdioden-Anwendung

Application (category and product specific):

Zusatzscheinwerfer – zusätzliche Fernlichtanwendung

Nominal wattage:

140 W

Color temperature:

6000 K

Type of protection:

IP6K8 IP6K9K

Shipping weight:

4,69 kg

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

LEDriving LIGHTBAR FX1000-CB SM

OSRAM Lightbar FX1000-CB SM :
ECE Certified - 2 x ECE R112: The necessary tests and approvals have been carried out and ECE type approval has been granted2)Centralised individual mounting possibleECE reference number: 50+50
Combo Beam: Designed for both far-field and near-field illumination. For large-area illumination in the near field and pinpoint illumination in the far field.
Light beam up to 635 m long: See and be seen with OSRAM
Bringing light to life with the OSRAM LEDriving auxiliary and work lights

The OSRAM LEDriving Lightbar FX1000-CB SM provides remarkable visibility on dark country roads, forest tracks and off-road, on-road and off-road. With 40 long-life high-performance LEDs, the OSRAM Lightbar FX1000-CB SM achieves a range of up to 635 metres and thus offers the driver impressive visibility on the road and off-road. The OSRAM LEDriving Lightbar FX1000-CB SM can also provide daylight-like conditions in twilight and reduced visibility due to external environmental influences with up to 6000 Kelvin. The powerhouse with up to 8000 lumen luminosity scores with maximum optical efficiency and homogeneous light distribution. This results in improved visibility for you and improved visibility of your vehicle by other road users, and consequently also increased safety on-road and off-road.
Whether on-road or off-road, the OSRAM LEDriving Lightbar FX1000-CB SM impresses with its powerful performance and long service life of up to 5000 hours. Versatile in use, it can withstand numerous environmental influences and is particularly lightweight yet robust and resistant thanks to high-quality materials such as the aluminium housing and the sturdy polycarbonate lens. The OSRAM LEDriving Lightbar FX1000-CB SM has been tested in our DIN-certified environmental simulation laboratory for extreme external influences in terms of water, dust, shocks, heat, cold and permanent vibration and validated with IP protection class IP69K. The integrated thermal management system regulates the temperature of the LED spotlight and can thus prevent damage caused by overheating. The polarity protection prevents incorrect polarity reversal in the power supply and can therefore prevent possible damage caused by the LEDs switching off automatically. On-road and off-road, the OSRAM LEDriving Lightbar FX1000-CB SM is an effective and efficient addition to your vehicle. No registration or entry in the vehicle documents is required for these ECE-certified LED auxiliary headlights2).
ECE reference number: 50+50
The LED headlight can be fitted to cars, lorries, agricultural machinery, forestry machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads2).
The OSRAM LEDriving Lightbar FX1000-CB SM: Versatile and flexible in use.

2) OSRAM LEDriving Driving Lights are approved in accordance with ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to the ECE approval of the product, individual special regulations and laws of the countries must be observed.

Mounting Type:	Bolted
Lamp Type:	LED
Width [mm]:	83
Rated Power [W]:	140
Height [mm]:	54
fulfils ECE standard:	R10 R112
Weight [g]:	4,360
Length [mm]:	1,074
Vehicle Main Current:	for vehicles with 24V main current für Fahrzeuge mit 12V Bordnetz, für Fahrzeuge mit 24V Bordnetz
Nominal luminous flux:	8000 lm
Rated voltage:	12/24 V
Product line:	Lightbar FX1000-CB SM GEN 2
Test voltage:	13,2 V
Lifespan Tc:	5000 hr
Technology:	LED
REM technology:	Leuchtdioden-Anwendung
Application (category and product specific):	Zusatzscheinwerfer – zusätzliche Fernlichtanwendung
Nominal wattage:	140 W
Color temperature:	6000 K
Type of protection:	IP6K8 IP6K9K
Shipping weight:	4,69 kg
