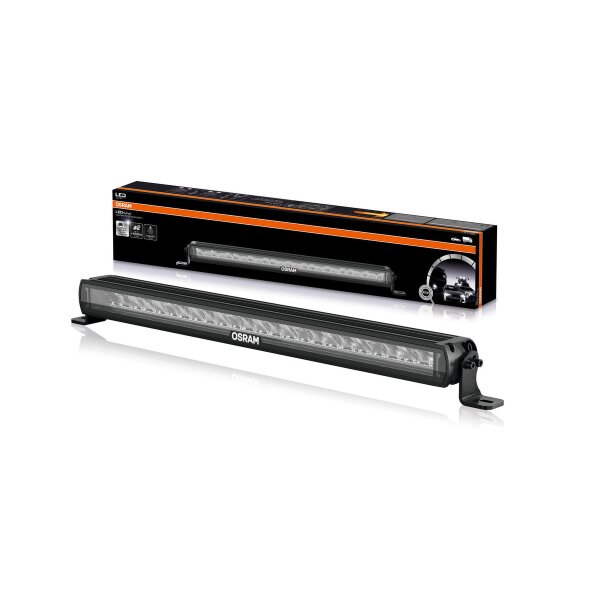

Auxiliary headlamp LED 94W screwed R10 6000K 5990lm OSRAM LIGHTBAR FX750

SKU: 112005266

GTIN:4062172366205
HAN:LEDDL133-CB SM

Auxiliary headlamp LED 94W screwed R10 6000K 5990lm OSRAM LIGHTBAR FX750

290,31 €

incl. 19% VAT , plus

Mounting Type:

Bolted

Lamp Type:

LED

Width [mm]:

Rated Power [W]:

Height [mm]:

692

fulfils ECE standard:

R10 R149

Weight [g]:

2,658

Length [mm]:

Vehicle Main Current:

for vehicles with 12V main current

Headlight Range [m]:

450

Nominal luminous flux:

5990 lm

Product line:

Lightbar FX750-CB SM GEN 2

Lifespan Tc:

5000 hr

Technology:

LED

REM technology:

Leuchtdioden-Anwendung

Application (category and product specific):

Zusatzscheinwerfer – zusätzliche Fernlichtanwendung

Nominal wattage:

94 W

Color temperature:

6000 K

Type of protection:

IP6K8 IP6K9K

Shipping weight:

3,43 kg

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

OSRAM LEDriving® Lightbar FX750-CB SM GEN 2, LED auxiliary headlamp for high and low beam, combo, 6000K, 5990lm, light beam up to 450m, 12V/24V, ECE approval

COMBO BEAM - Combined beam characteristics for both high beam and low beam illumination
Maximum optical efficiency, effectiveness and homogeneous light distribution: Power Level: 5990lm | Light beam up to 450m
Special reflector design for an appealing and modern look and reduced glare: efficient reflector design with 25 OSRAM high-power LEDs
Rugged and resistant - shatterproof polycarbonate lens and die-cast aluminium housing with special black coating
OSRAM LEDriving lights are approved in accordance with ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to the ECE approval of the product, individual special regulations and laws of the countries must be observed.

Increased brightness for long-range and close-range illumination. Greater visibility can be an important safety factor, especially when travelling on country roads and unpaved roads. With up to 5,990 lumens, the LEDriving® Lightbar FX750-CB SM GEN 2 provides additional close-range and long-range illumination on dark roads. Even in poor visibility conditions or at dusk, the 25 high-performance LEDs achieve a light range of up to 450 metres and daylight conditions with a colour temperature of 6000 Kelvin. The auxiliary headlamp impresses with a special reflector design and not only ensures a modern and appealing look, but also reduces glare for greater visibility in road traffic. It can be used both as an additional LED spotlight and as a powerful work light. Both versions of the light are fully ECE-compliant and therefore suitable for use in road traffic. In addition, OSRAM has developed a specially designed mounting kit that is compatible with all auxiliary lights in the FX Gen 2 series for customised mounting. Versatile in use, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminium housing and the stable polycarbonate lens, is particularly light and at the same time robust and resistant. Complete reverse polarity protection prevents damage from overvoltage and contributes to a longer service life. The LEDriving® Lightbar FX750-CB SM GEN 2 auxiliary headlamp has been tested and validated in a DIN-certified environmental simulation laboratory for extreme external influences in terms of water, dust, shocks, heat, cold and permanent vibration in accordance with the highest IP & IK protection classes IP6K8 & IP6K9K. Its variability gives the FX Gen 2 series a flexible range of applications. It can be fitted to cars, lorries, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads.

Mounting Type:	Bolted
Lamp Type:	LED
Width [mm]:	83
Rated Power [W]:	94
Height [mm]:	692
fulfils ECE standard:	R10 R149
Weight [g]:	2,658
Length [mm]:	54
Vehicle Main Current:	for vehicles with 12V main current
Headlight Range [m]:	450
Nominal luminous flux:	5990 lm
Product line:	Lightbar FX750-CB SM GEN 2
Lifespan Tc:	5000 hr
Technology:	LED
REM technology:	Leuchtdioden-Anwendung
Application (category and product specific):	Zusatzscheinwerfer – zusätzliche Fernlichtanwendung
Nominal wattage:	94 W
Color temperature:	6000 K
Type of protection:	IP6K8 IP6K9K
Shipping weight:	3,43 kg

Manufacturer Information

OSRAM GmbH

Marcel-Breuer-Straße 6

85609 München

Bayern

Deutschland

contact@osram.com

https://www.osram.com/cb/
